Current Rating
10A
Usage/Application
For Electronic Use
Circuit Type
1 Way
Switch Type
RF
Material
ABS
Number Of Poles
2 Pole
Number of Module
1M
Color
Multicolor
Remote Type
Wireless
Channels
1 Channel
Frequency
433MHz

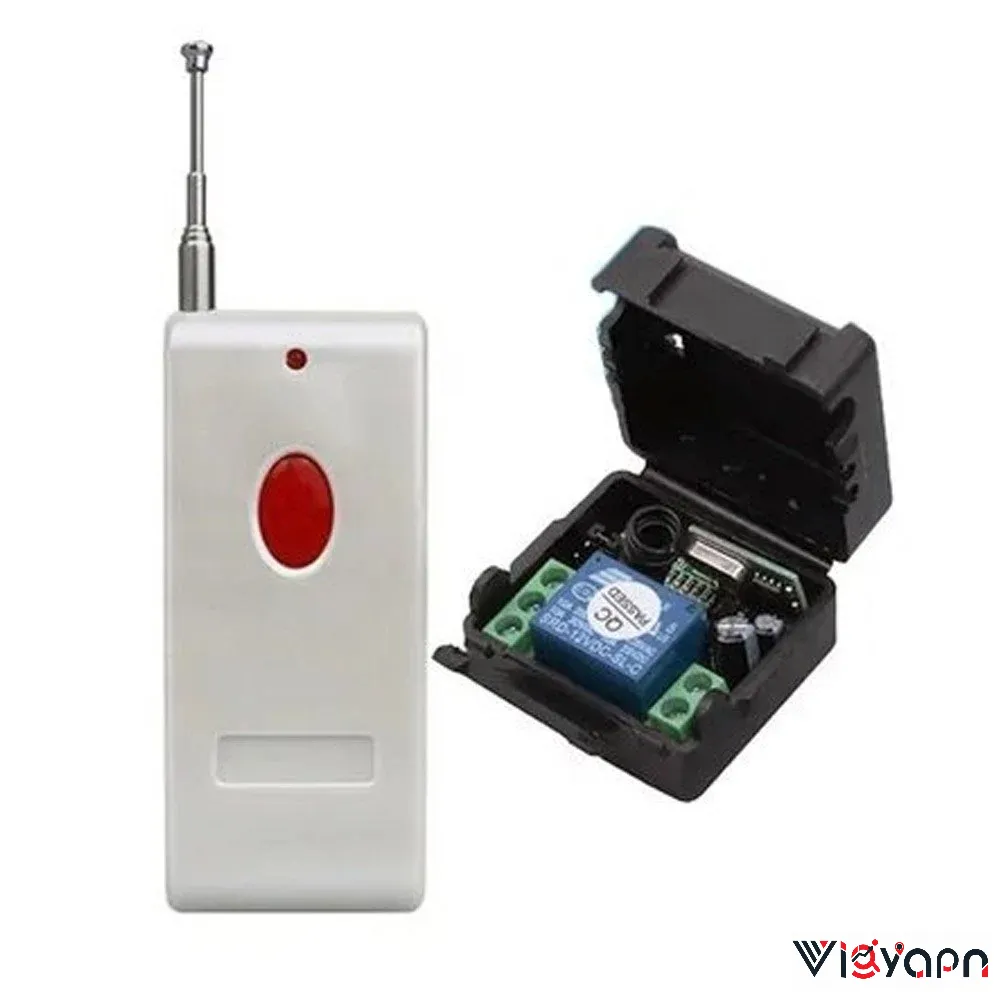

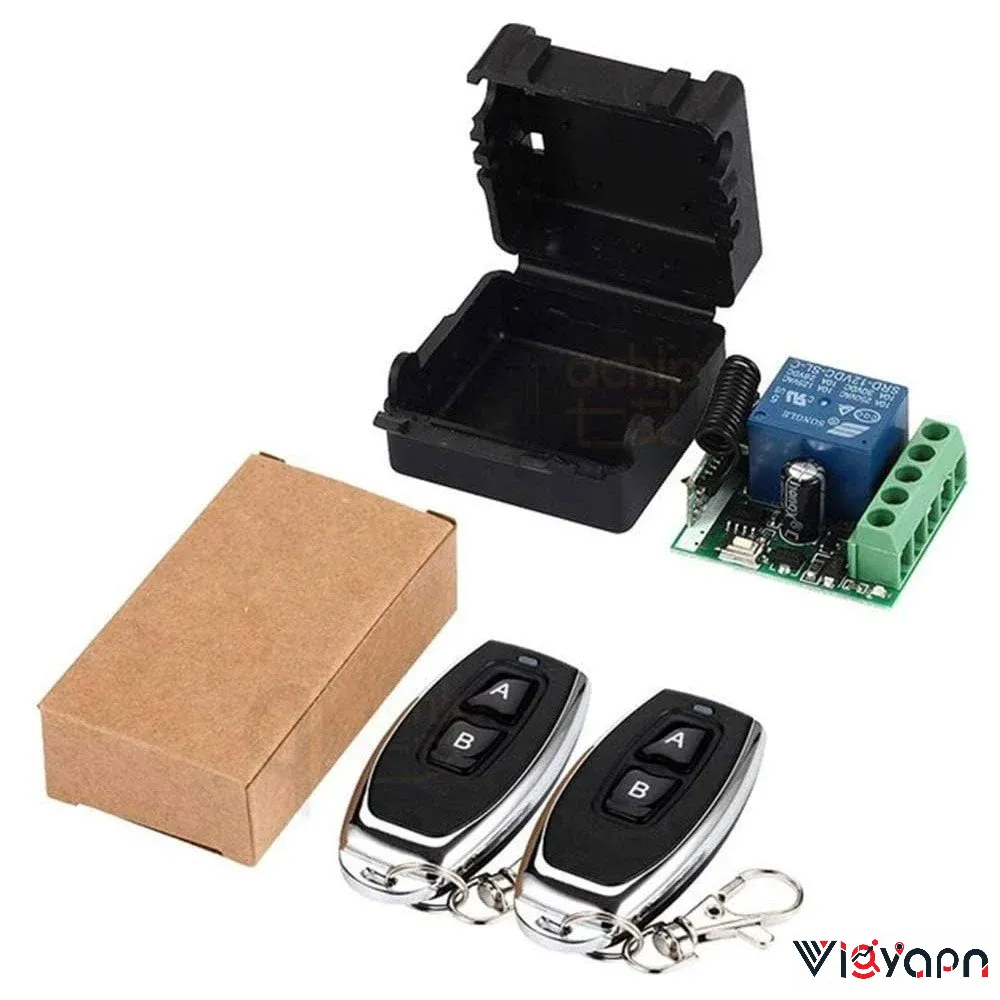

A002 Low power wireless remote control
Working voltage: DC12V/23A Operating frequency: 315MHz, 433.92MHz (optional) Working current: 25mA Coding method: fixed code (PT2264 chip)learning code (eV1527/PT2240B)
Transmission distance: >1000m (the sensitivity of the receiving board in the open field is above -103dBm) Output power: 16dBm (40mW) .
Transmission rate: <10Kbps Modulation method: ASK (amplitude modulation) Working temperature: -10℃~+70℃ Size: 85.3*36.4*16.2mm .

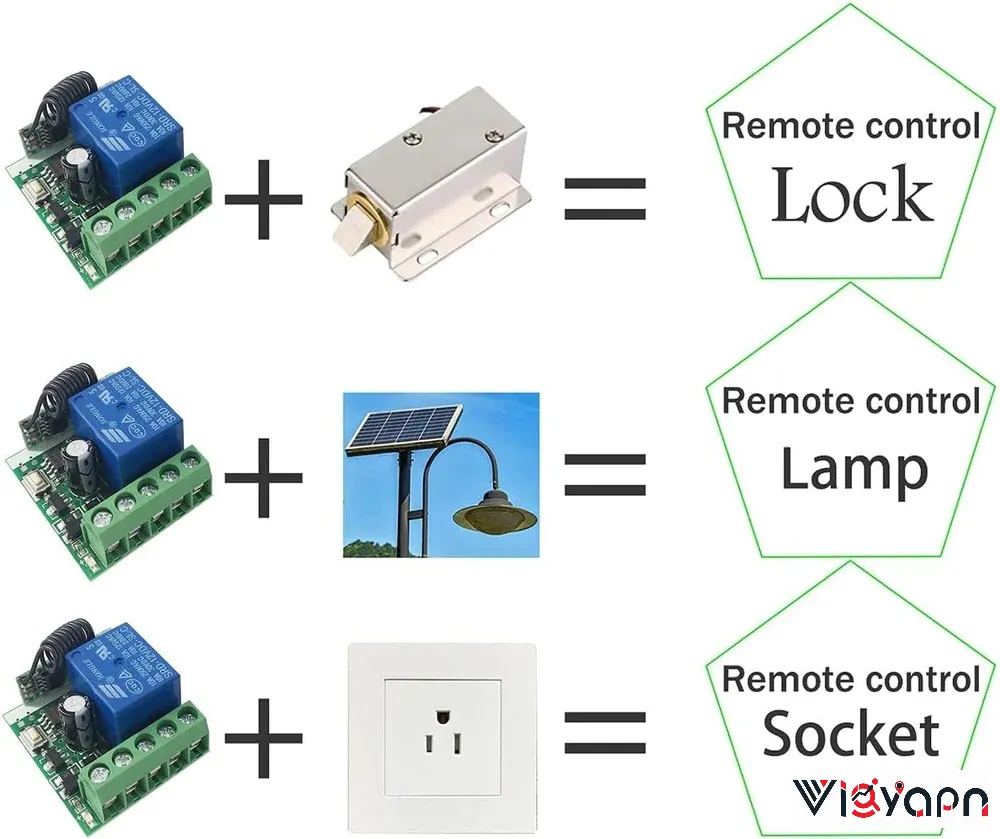

Application areas: Remote control switch, anti-theft alarm, remote control door lock, remote control electric shutter doors and windows, industrial control products, etc.
Working Mode
Momentary. Toggle .Latched
Momentary
press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control
Toggle
press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control
Latched
press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control )
Call 7942964955
₹ 285
Verified
Ad Id : 418697
Type : Camera Accessories
Sub Category : Wireless Remote Controls
Brand : Others
Owner Type : Owner
